4M12-4P2-5

Order number： 0010019

Quick Info

M8, 8-channel double signal .
Protection class IP65.
External PNP sensor signal.
With Homerun Cable,5m.
With on-site diagnosis function.

Specifications
Download
Accessories

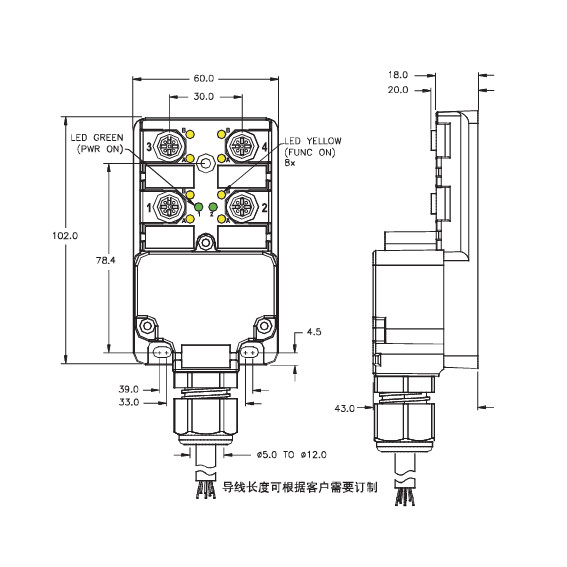

Mounting specifications
Rated voltage
10-30VDC
Rated current
10A
Current carrying capacity per channel
2A
Number of ports
4
Port interface
M12 Female
Screw-in thread
PG9
Power supply voltage display
Green LED
I/O status display
Yellow LED
Protection class
IP65


2023-02-02 4M12-4P2-5_en Download
Mounting accessories
CYCS4-2AK3
Y-Splitter without Cable
Housing material：PVC
ZAK3-2-ZAS3/PVC
I/O Cable：3-pin，M12 Male-Female
Cable Material：PVC，2m
ZAS4-2/PVC
I/O cable：4-pin，M12 Male
Cable Material：PVC，2m
ZSM4-PG7
M12FIELD-WIREABLE CONNECTORS
Plastic shell
