ZSM4-PG7

Order number： 3852407

Quick Info

M12 × 1 Field-Wireable Connector
Male Connector, A-code，4-pin，Straight
PG7 screw-in thread

Specifications

Download

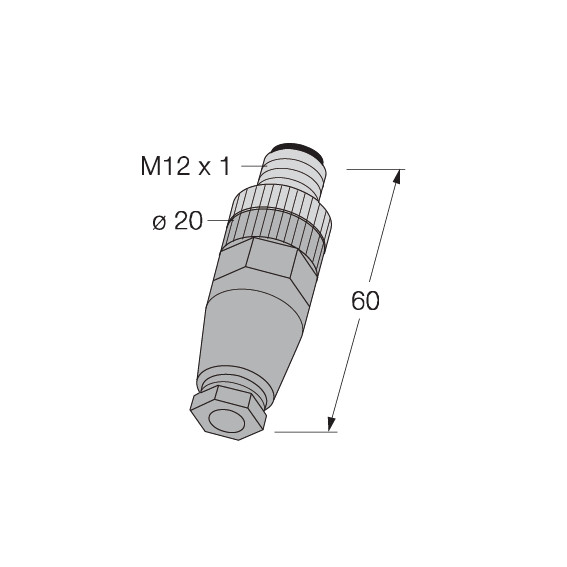

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Ambient temperature range

-40-85℃

Cable diameter

4...6mm

Contacts

CuZn

Contact surface

CuZn-CZS

Seal

Viton

Protection class

IP67

2022-04-13 ZSM4-PG7
