CMPN-IM32-0001

Order number： 78265303

Quick Info

Profinet remote I/O module
Integrated Ethernet Switch
Support 100Base-TX
Metal housing,Protection classes IP20
IO signal connection adopts pluggable shrapnel tightening termina
The power supply is connected with pluggable screw terminal strip

Specifications
Download
Accessories

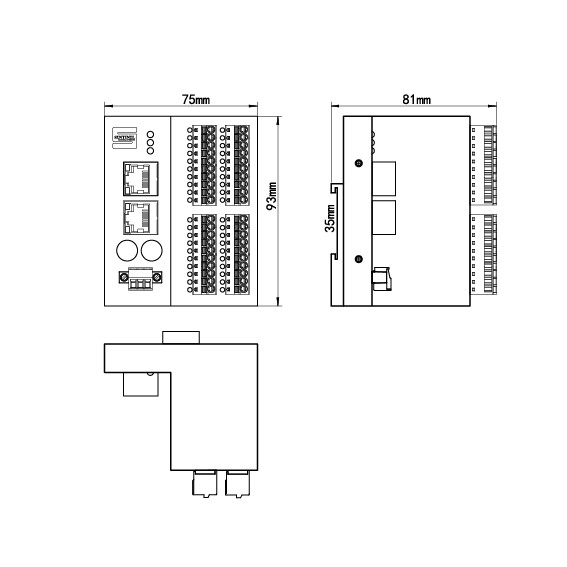

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 75mA
Number of input channels
32
Input type
PNP/NPN
Switch threshold
2mA/4mA
Maximum input current
6mA
Input delay
2.5ms
Automatic consultation mechanism
Yes
Automatic cross-flip
Yes

2022-07-19 EPLAN_CMPN-IM32-0001 Download
2022-06-07 CMPN-IM32-0001-GSDML Download
2022-06-07 CMPN-IM32-0001-en Download
Mounting accessories
RJ45-2-RJ45/PVC/PN/FLEX
Fieldbus： RJ45-RJ45
Cable Material：PVC，2m
RJ45-5-RJ45/PVC/PN/FLEX
Fieldbus： RJ45-RJ45
Cable Material：PVC，5m
RJ45-10-RJ45/PVC/PN/FLEX
Fieldbus： RJ45-RJ45
Cable Material：PVC，10m
