CIOL-1AO-SC

Order number： 78300005

Quick Info

IO-Link Device Converters
Single-channel 4-20mA/0-20mA Output M12,4-pin female
IO-Link V1.1
IO-Link class A,M12,A-code,4-pin male
Transparent Housing with LED Indicators

Specifications

Download

Accessories

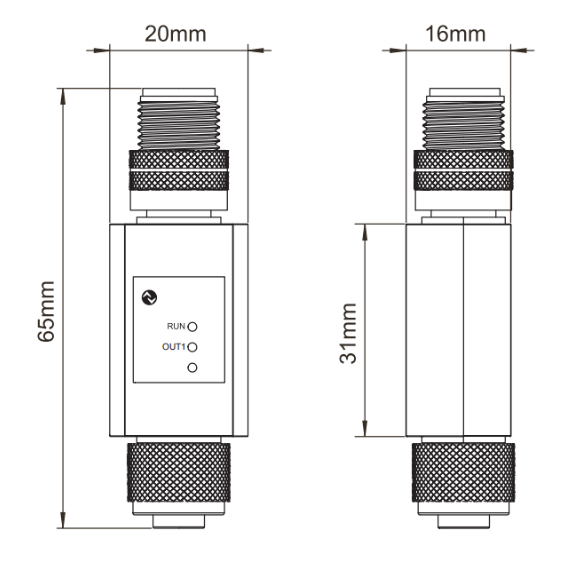

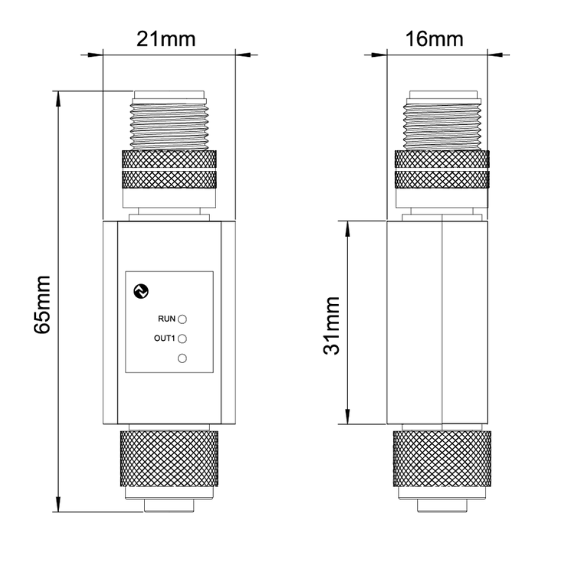

Mounting specifications

Supply voltage

24VDC ± 10%

Operating current

< 50mA

Number of channels

Output type

4-20mA/0-20mA analog output

output resolution

≤12bits

Measurement accuracy

0.1%F.S

Data format

data in uA

Max. output range

0-20mA

Operating temperature

-25...80℃

2025-05-30 Sentinel-CIOL-1xO-SC-20250429-IODD1.1

Download

2025-05-28 CIOL-1AO-SC_en

Download

Mounting accessories

ZAK4-2/PVC

I/O Cable：M12 ，Female，4-pin，Straigh

Cable material：PVC，2m
