ELPN-8IOL-004B

Order number： 78263320

Quick Info

PROFINET remote I/O module
8 IO-Link Master Channels（4Class A+4Class B）
2XM12,4-pin,D-code,Ethernet Fieldbus connection
IO-Link Protocol 1.1
Protection classes IP67
Copper-plated nickel connector
Fully potted module electronics
Glass fiber housing

Specifications

Download

Accessories

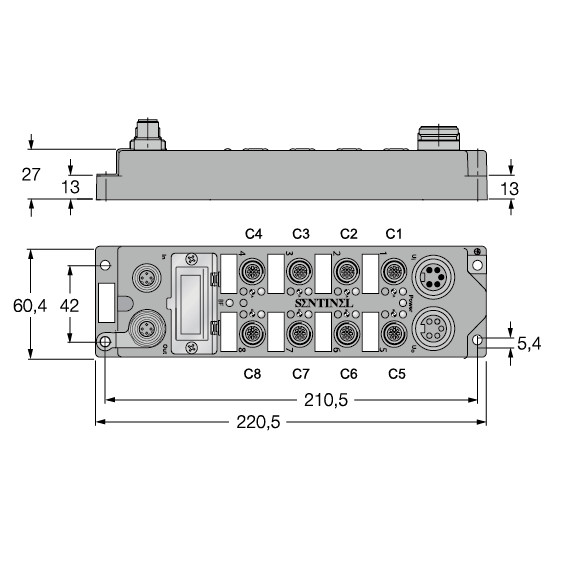

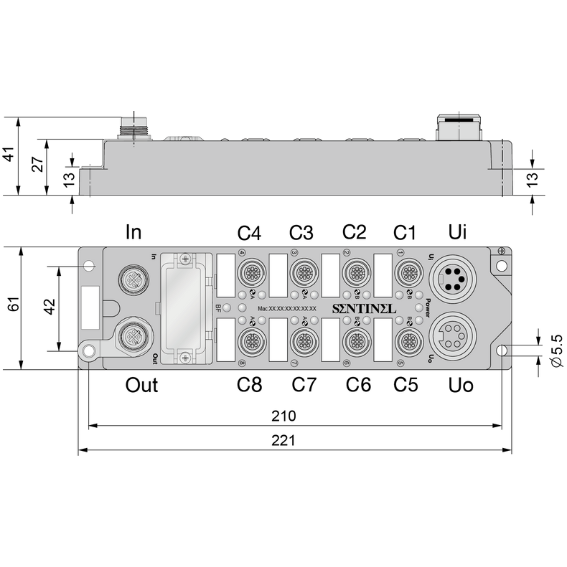

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 200mA

IO-Link Port type

4 Class A+4 Class B

Supply current

>8A
