TL04X-12YP-RD6-C2

Order number： 12404121

Quick Info

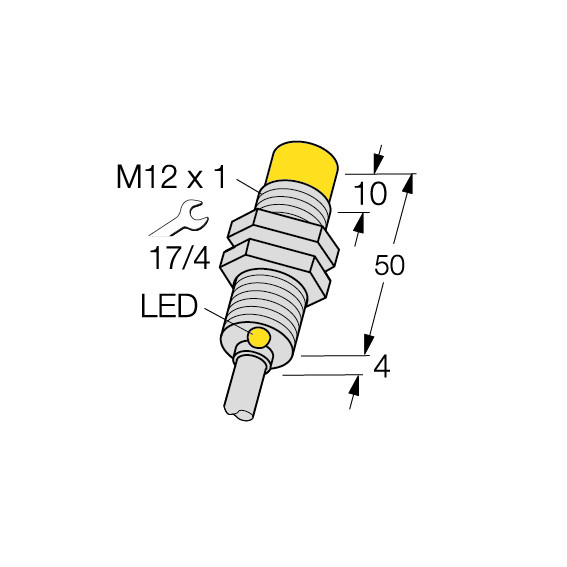

M12X1 cylindrical thread
CuZn-Cr shell material
2m,PVC
Protection class IP67

Specifications

Download

Mounting specifications

Operating Voltage

10-30VDC

Rated switching distance

4mm

Mounting conditions

Non-flush

Output

DC NC

DC rated operational current

<100mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67
