SEC6-1/4GA-VPN8D-SC

Order number: 61001034

Quick Info

Large size digital tube and the display can be inverted by 180°.
The 304 stainless steel housing,the housing can be freely rotated by 330°.
Three programmable buttons can quickly select and switch the menus.
The measurement accuracy can reach 0.5% of the full scale.
Bluetooth transmission, which can be remotely controlled through APP.

Specifications
Download
Accessories

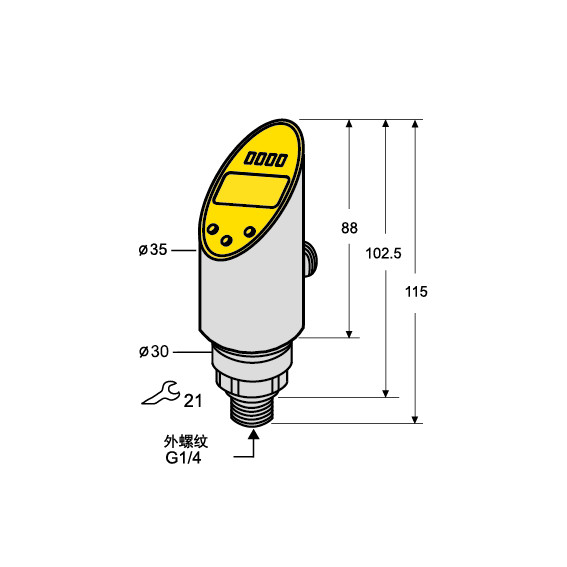

Mounting specifications
Operating Voltage
18-30VDC
No-load current
< 50mA
Measuring range
0-600bar
Output type
0...10V+2XPNP/NPN
Process connection
G1/4 external thread
Switch point
8% f.s. up to 100% f.s.
Release point
5% f.s. up to 95% SP
Response time
<3ms
Protection class
IP65

Mounting accessories
I/O Cable:5-pin,M12 Female
Cable Material:PVC,2m
