TL15X-30YP-AP6-SC

Order number： 13305034

Quick Info

M30X1.5 cylindrical thread
CuZn-Cr shell material
M12x1 connector
Protection class IP67

Specifications

Download

Accessories

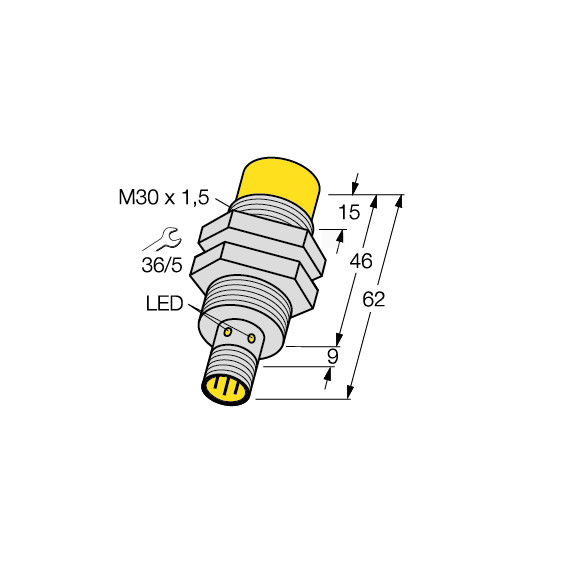

Mounting specifications

Operating Voltage

20-250VAC

Rated switching distance

15mm

Mounting conditions

Non-flush

Output

AC NO

Output leakage current

<2mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67

Mounting accessories

I/O Cable：3-pin，M12 Male-Female

Cable Material：PVC，2m

I/O Cable：3-pin，M12 Female

Cable Material：PVC，2m
