ZZKE4-PG9

Order number： 3961409

Quick Info

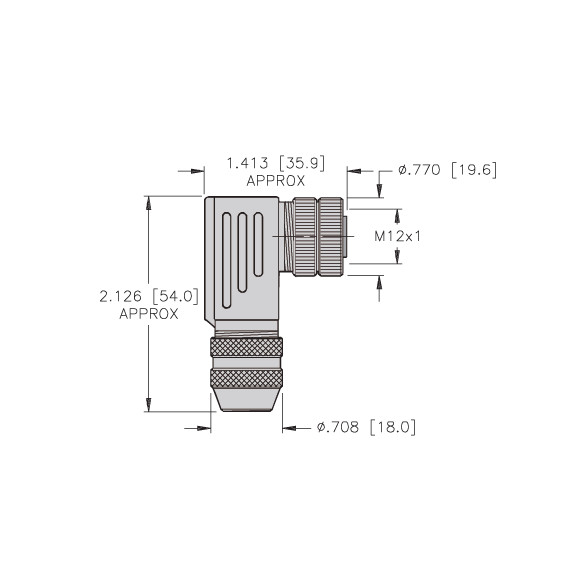

M12 × 1 Field-Wireable Connector
Female, A-code，4-pin，Angled
EMC shielded metal shell
PG9 screw-in thread

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Ambient temperature range

-40-85℃

Cable diameter

6...8mm

Contacts

CuZn

Contact surface

CuZn-CZS

Seal

Viton

Protection class

IP67

2022-04-13 ZZKE4-PG9
