8MM8-3N1-P

Order number： 0030006

Quick Info

M8, 8-channel single signal.
Protection class IP65.
External NPN sensor signal.
The connection mode is Shrapnel tightening terminal.
With on-site diagnosis function.

Specifications

Download

Accessories

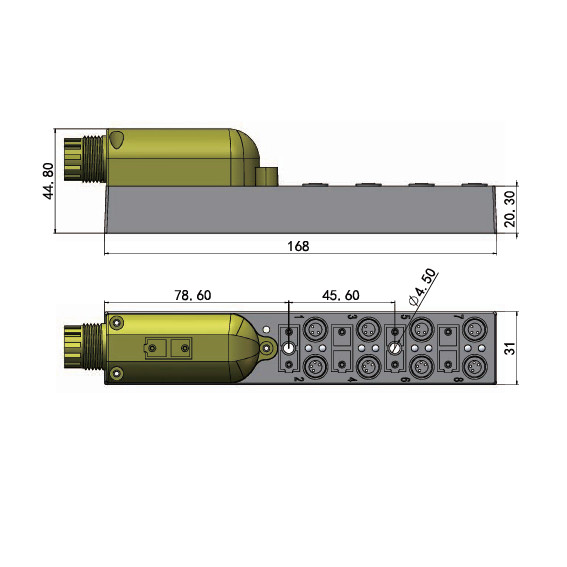

Mounting specifications

Rated voltage

10-30VDC

Rated current

10A

Current carrying capacity per channel

Number of ports

Port interface

M8 Female

Screw-in thread

PG9

Power supply voltage display

Green LED

I/O status display

Yellow LED

Protection class

IP65

2023-02-02 8MM8-3N1-P_en

Download

Mounting accessories

ZBS3-2/PVC

I/O cable：3-pin，M8 Male

Cable Material：PVC，2m

BSM3-0

M8 FIELD-WIREABLE CONNECTORS

Plastic shell，3-pin， Male
