SIOL-M12-8DION

Order number： 78320008

Quick Info

IO-Link remote I/O device
8 Digital inputs Channels，M12，5-pin
8 Digital outputs Channels，Max. 1 A per output
IO-Link Protocol 1.1
IO-Link class A，M12，A-code
Impact and vibration resistance
Protection classes IP67

Specifications
Download
Accessories

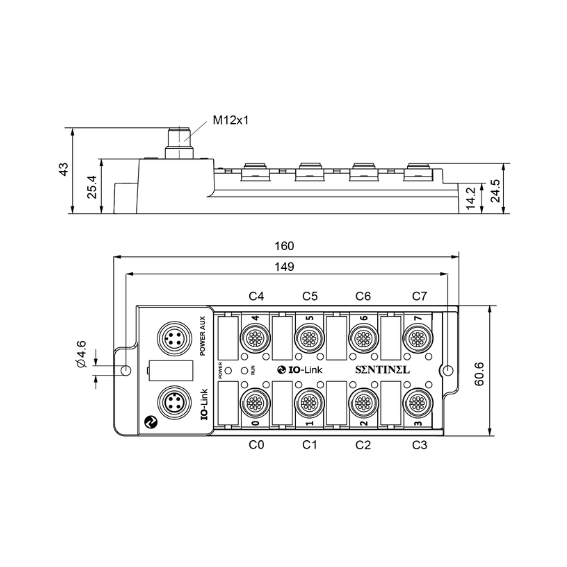

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 100mA
Current required for the auxiliary power supply
>8A
Number of input channels
8
Input type
NPN
Number of output channels
8
Output current
0.5A
Output voltage drop
0.6V
Electrical Isolation mode
Optocoupler isolation
ISDU
Supported
Operating temperature
-20-55℃

2022-07-19 EPLAN_SIOL-M12-8DION Download
2022-06-09 SIOL-M12-8DION-IODD files Download
2022-06-09 SIOL-M12-8DION-en Download
Mounting accessories
ZAK3-2-ZAS3/PVC
IO-LINK Cable： Male，Female
Cable Material：PVC，2m
ZKM4-PG9
Field-Wireable Connector,M12,Female
Plastic shell，4-Pin，A-Code
CYCS5-2AK4
Y-Splitter without Cable
Housing Material：PVC
ZASY4-2ZAK3-2/PVC
Y-Splitter with Cable
Cable Material：PVC，2m
ZAS4-2/PVC
I/O Cable：M12 Male
Cable Material：PVC，2m
