IO-Link

SIOL-TL-32DI

Order number: 78320003

Quick Info

IO-Link remote I/O device
32 Digital PNP/NPN inputs
Four groups of IO terminals are independently powered.
IO-Link Protocol 1.1
DIN guide rail installation
Metal housing , Protection class IP20

Specifications
Download
Accessories
CAD

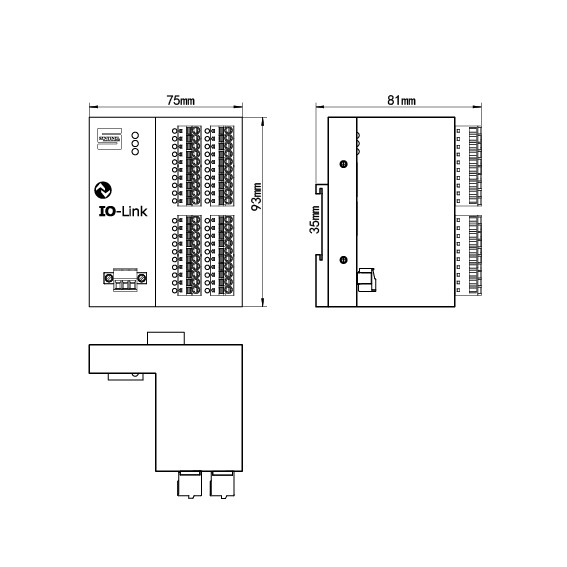

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 200mA
Maximum Supply current
1.4A
Number of input channels
32
Input type
PNP/NPN
Input delay
5ms
ISDU
Supported
Operating temperature
-20-55℃

Mounting accessories
IO-LINK Cable: Male
Cable Material:PVC,2m

CAD
