SIOL-TL-32DO

Order number： 78320004

Quick Info

IO-Link remote I/O device
32 Digital outputs
Four groups of IO terminals are independently powered.
IO-Link Protocol 1.1
DIN guide rail installation
Metal housing , Protection class IP20

Specifications
Download
Accessories

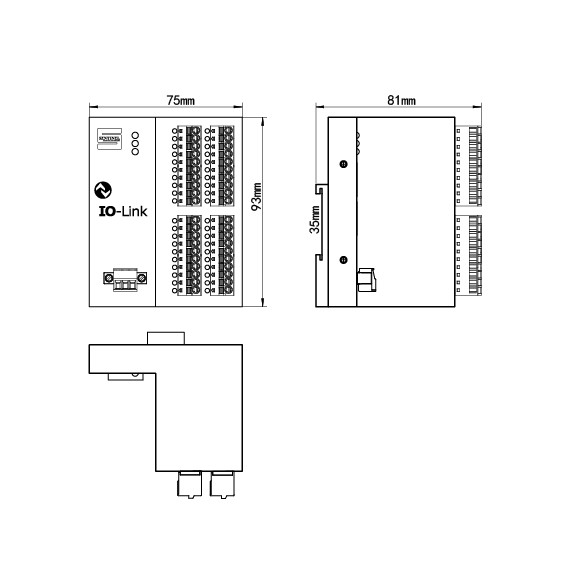

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 100mA
Number of channels
32
Output current
0.2A
Electrical Isolation mode
Optocoupler isolation
Output voltage drop
0.6V
ISDU
Supported
Operating temperature
-20-55℃

2022-07-19 EPLAN_SIOL-TL-32DO Download
2022-06-09 SIOL-TL-32DO-IODD files Download
2022-06-09 SIOL-TL-32DO-en Download
Mounting accessories
ZAS3-2/PVC
IO-LINK Cable： Male
Cable Material：PVC，2m
