SIOL-M8-8DIP

Order number： 78320001

Quick Info

IO-Link remote I/O device
8 Digital inputs Channels，M8，3-pin
IO-Link Protocol 1.1
IO-Link class A，M12，A-code
Impact and vibration resistance
Protection classes IP67

Specifications

Download

Accessories

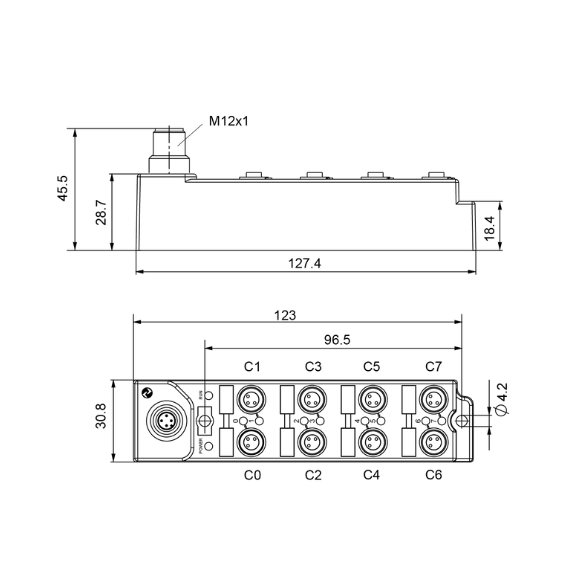

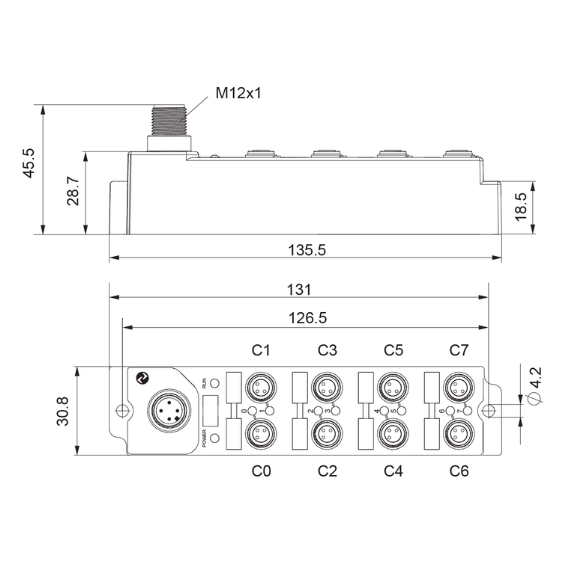

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 100mA

Maximum Supply current

1.4A

Number of input channels

Input type

PNP

Input delay

3ms

ISDU

Supported

Operating temperature

-20-55℃

2022-07-19 EPLAN_SIOL-M8-8DIP

Download

2022-06-09 SIOL-M8-8DIP-IODD files

Download

2022-06-09 SIOL-M8-8DIP-en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO-LINK Cable： Male，Female

Cable Material：PVC，2m

ZKM4-PG9

Field-Wireable Connector,M12,Female

Plastic shell，4-Pin，A-Code

BSM3-0

Field-Wireable Connector,M8,Male

Plastic shell，3-Pin

ZBS3-2/PVC

I/O Cable：M8, Male, 3-pin

Cable Material：PVC，2m
