IO MODULES

ELPN-IM16-0003

Order number: 78263312

Quick Info

Profinet remote I/O module
Integrated Ethernet Switch
Support 100Base-TX
Protection classes IP67
Copper-plated nickel connector
Fully potted module electronics
Glass fiber housing

Specifications
Download
Accessories

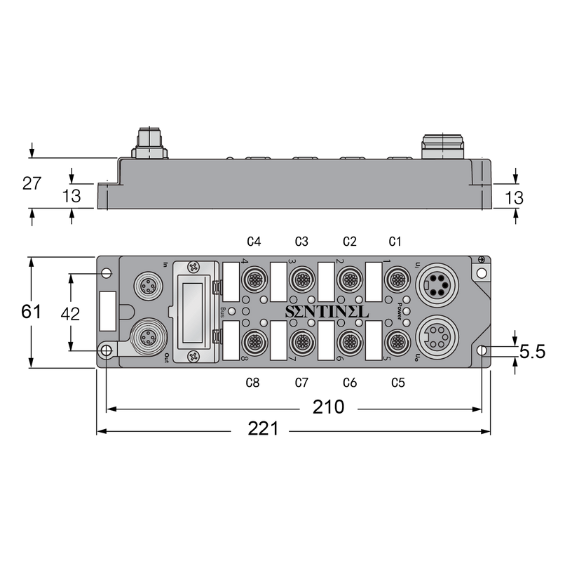

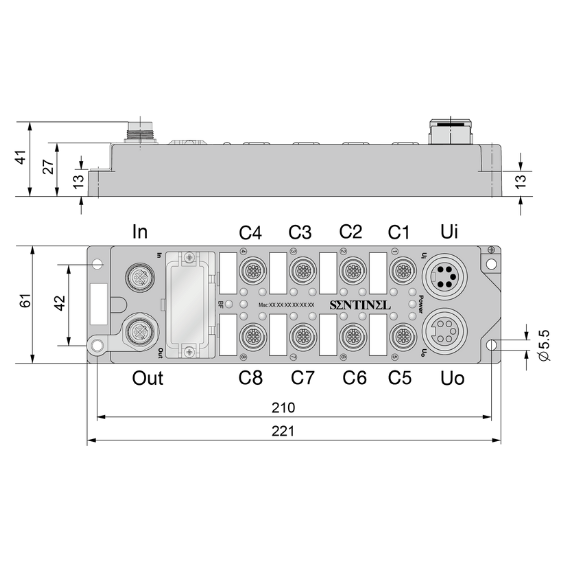

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 200mA
Number of input channels
16
Input type
PNP
input impedance
3K
Input rated current
about 7mA
Input delay
3ms
Automatic consultation mechanism
Yes
Automatic cross-flip
Yes

Mounting accessories
Fieldbus: M12-RJ45
Cable Material:PVC,2m
Fieldbus: M12-M12
Cable Material:PVC,2m
Power Cable: Male,Female
Cable Material:PVC,2m
Power Cable: Female
Cable Material:PVC,2m
Y-Splitter
Housing material:PVC
Y-Splitter with Cable,M12
Cable Material:PVC,2m
I/O cable:M12,Male
Cable Material:PVC,2m
Field-Wireable Connector ,7/8‘’
5-Pin, Female
Field-Wireable Connector ,7/8‘’
5-Pin, Male
Field-Wireable Connector ,Fieldbus
4-Pin,D-Code
