ELCT-8IOL-004B

Order number： 78310018

Quick Info

EtherCAT remote I/O module
IO-Link master port 4 class A+4 class B
2XM12,4-pin,D-code,Ethernet Fieldbus connection
IO-Link Protocol 1.1
Protection classes IP67
Copper-plated nickel connector
Fully potted module electronics
Glass fiber housing

Specifications

Download

Accessories

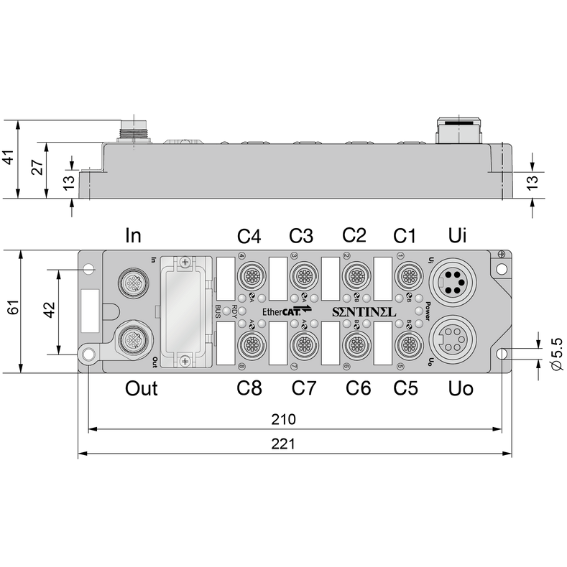

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 200mA

IO-Link Port type

4 Class A+4 Class B

Supply current

>8A

IO-Link specification

Version 1.1

Support Device

Maximum 32Bytes Input / 32Bytes Output

Auto-negotiation

YES

Auto-MDI/MDIX

YES

Operating temperature

-20-55℃

2025-06-25 ELCT-8IOL-004B-ESI files

Download

2024-12-25 ELCT-8IOL-004B_en

Download

Mounting accessories

ZNS5-2-RJ45/PVC/PN/FLEX

Fieldbus： M12-RJ45

Cable Material：PVC，2m

ZNS5-2-ZNS5/PVC/PN/FLEX

Fieldbus： M12-M12

Cable Material：PVC，2m

ZMK5-2-ZMS5/PVC

Power Cable： Male，Female

Cable Material：PVC，2m

ZMK5-2/PVC

Power Cable： Female

Cable Material：PVC，2m

ZAK3-2-ZAS3/PVC

IO-LINK Cable： Male，Female

Cable Material：PVC，2m

MKP5-PG11

Field-Wireable Connector ，7/8‘’

5-Pin， Female

MSP5-PG11

Field-Wireable Connector ，7/8‘’

5-Pin， Male

HSE4-PG9

Field-Wireable Connector ，Fieldbus

4-Pin，D-Code
