ELPN-IOM88-0003

Order number： 78263314

Quick Info

Profinet remote I/O module
Integrated Ethernet Switch
Support 100Base-TX
Protection classes IP67
Copper-plated nickel connector
Fully potted module electronics
Glass fiber housing

Specifications
Download
Accessories

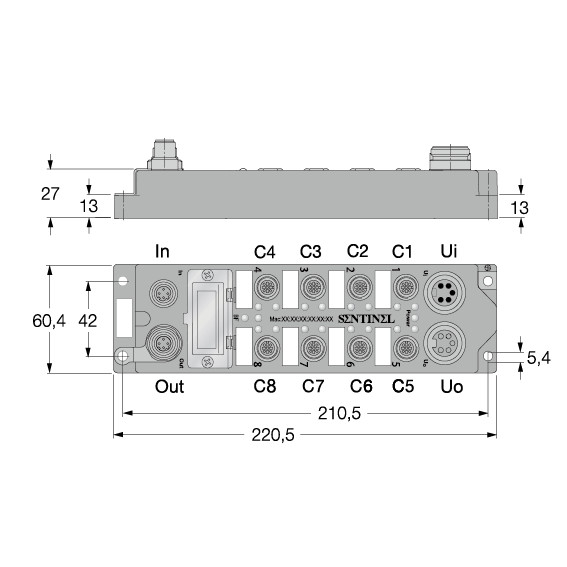

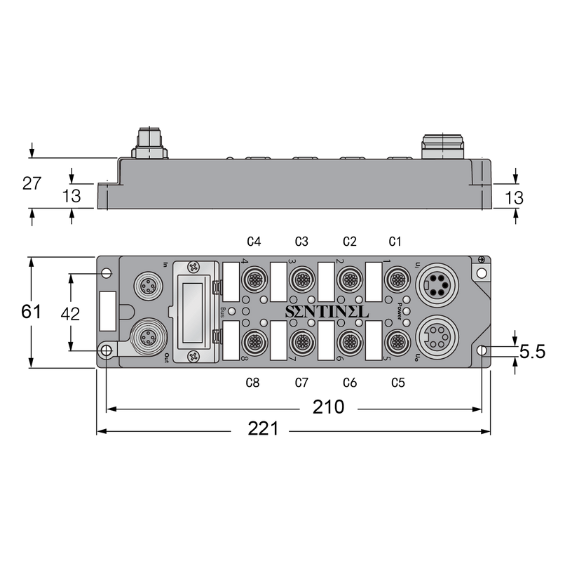

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 200mA
Number of input channels
8
Input type
PNP
Number of output channels
8
Output current
0.5A
Output protection
Overload protection, overheating protection
Output voltage drop
0.6V
Automatic consultation mechanism
Yes
Automatic cross-flip
Yes

2022-07-19 EPLAN_ELPN-IOM88-0003 Download
2022-06-07 ELPN-IOM88-0003-GSDML Download
2022-06-07 ELPN-IOM88-0003-en Download
Mounting accessories
ZNS5-2-RJ45/PVC/PN/FLEX
Fieldbus： M12-RJ45
Cable Material：PVC，2m
ZNS5-2-ZNS5/PVC/PN/FLEX
Fieldbus： M12-M12
Cable Material：PVC，2m
ZMK5-2-ZMS5/PVC
Power Cable： Male，Female
Cable Material：PVC，2m
ZMK5-2/PVC
Power Cable： Female
Cable Material：PVC，2m
CYCS5-2AK4
Y-Splitter
Housing material：PVC
ZASY4-2ZAK3-2/PVC
Y-Splitter with Cable,M12
Cable Material：PVC，2m
ZAS4-2/PVC
I/O cable：M12，Male
Cable Material：PVC，2m
MKP5-PG11
Field-Wireable Connector ，7/8‘’
5-Pin， Female
MSP5-PG11
Field-Wireable Connector ，7/8‘’
5-Pin， Male
HSE4-PG9
Field-Wireable Connector ，Fieldbus
4-Pin，D-Code
