CMBC-OM32-0001

Order number： 78285103

Quick Info

CC-Link IEF Basic remote I/O module
Integrated Ethernet Switch
Support 100Base-TX
2 RJ45 ports for the Ethernet connection
Metal housing,Protection classes IP20
DIN guide rail installation

Specifications
Download
Accessories

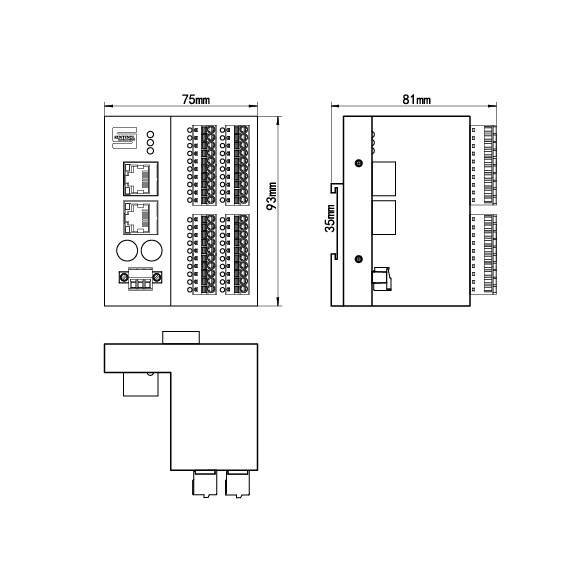

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 200mA
Output voltage drop
0.6V
Number of output channels
32
Output current
0.2A
Number of occupied stations
one station（64bit）
Default IPv4 address
192.168.3.*
Default subnet mask
255.255.255.0

2022-07-19 EPLAN_CMBC-OM32-0001 Download
2022-06-09 CMBC-OM32-0001-CSP files Download
2022-06-09 CMBC-OM32-0001-en Download
Mounting accessories
RJ45-2-RJ45/PVC/PN/FLEX
Fieldbus： RJ45-RJ45
Cable Material：PVC，2m
RJ45-5-RJ45/PVC/PN/FLEX
Fieldbus： RJ45-RJ45
Cable Material：PVC，5m
RJ45-10-RJ45/PVC/PN/FLEX
Fieldbus： RJ45-RJ45
Cable Material：PVC，10m
